This product is part of the Twido range, an offer of connection accessories for I/O extension. This pre-formed cable is an accessory for I/O extension. The length of this cable is 3m and cross section is 0.035mm². It is furnished with 20-pin HE10 male connector (Twido side) and free end for electrical connection. It weighs 0.405kg. This pre formed cable is compatible with TWDDDO32TK, TWDDDO16UK, TWDDDO32UK discrete output module and TWDDDI32DK, TWDDDO16TK, TWDDDI16DK discrete input module. The Modicon M221 logic controller offers best in class performance. Achieve benchmark performance while increasing profitability with the Modicon M221 logic controller, the most complete controller in the new Modicon range.

This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This logic controller provides 6 regular inputs, 4 fast inputs, 4 high speed inputs and 8 transistor outputs, 2 fast outputs. It is a Modicon logic controller with a rated supply voltage/output voltage of 24V DC, an output current of 0.5A and a power consumption of 16W at 24V DC. Easy to maintain and update with its micro SD memory card. Integrated connections are mini B USB 2.0, serial link 1 and RS485, serial link 2 and RS232/RS485, ethernet Modbus TCP/IP, and serial link 2 and RS485. It is a controller with an internal flash of 512byte and a micro SD card capacity of 32GB. It is an IP20 rated product. Its dimensions are 175mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.504kg. Designed for textile, machine tool, packaging, material handling, pumping, hoisting, electronic assembly machines. This product is certified by CE, CSA, IACS E10, RCM and CULus. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete output module provides 8 transistor outputs with source (positive) logic. It is an output module with an output voltage of 24V DC and a current consumption of 20mA at 24V DC via bus connector. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and internal logic at 500V AC, non-insulated between outputs. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.110kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

This digital input module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers. It consists in 16 logic inputs and it is supplied with 24V dc. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.105kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

discrete input module, Modicon TM3, 32 inputs, HE10, 24V DC

This TM221 controller is part of the Modicon M221 Logic controller range. It has 40 logic I/O and it is supplied with 24V DC. It is supplied with removable screw terminal blocks for connecting the I/O, a removable screw terminal block for connecting the power supply, a button cell backup battery BR2032 and a cable for connecting the analog inputs. M221 logic controllers have three types of integrated communication port, Ethernet, RS 232/RS 485 serial link and USB mini-B programming port. It enables the control of simple machines. The capacity of M221 logic controllers can be enhanced with the Modicon TM3 expansion module offer. Achieve benchmark performance while increasing profitability with Modicon M221 through intuitive machine programming with EcoStruxure Machine Expert Basic.

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The discrete input module provides 8 inputs with sink or source (positive/negative) logic. It is an input module with an input voltage of 24V DC and a current consumption of 24mA/5mA at 5V DC via bus connector. It can be used to create configurations with up to 8 inputs There is an insulation between input and internal logic at 500V AC and non-insulation between inputs. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for inputs. It is an IP20 rated product. Its dimensions are 27.4mm (Width) x 84.6mm (Depth) x 90mm (Height). It weighs 0.110kg. This product is certified by CE, CULus and C-Tick. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue output module provides 2 outputs with 11bit + sign and 12bit resolution. It is an output module with a rated supply voltage of 24V DC and a current consumption of 70mA at 24V DC via external supply full load. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 5.08mm pitch adjustment for outputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.115kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue input module provides 8 inputs with 11bit + sign and 12bit resolution. It is an input module with a rated supply voltage of 24V DC and a current consumption of 35mA at 5V DC via bus connector no load, 45mA at 5V DC via bus connector full load, 30mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.

controller, Modicon Easy M200, 40 IO, transistor source, Ethernet

HMIET6600 is an essential touchscreen panel of the Schneider Electric's Easy Harmony ET6 range. This single touch resistive HMI Ethernet panel has high resolution and more colors. This HMI interface is 12.1 inch wide with 16 million colors and 1,280 x 800 pixel resolution (WXGA). It is powered by Vijeo Designer Basic software for intuitive user experience. It has a 800 MHz ARM Cortex-A8 CPU, 256 MB as system and application memory, 128 KB nonvolatile memory. This HMI ET6 supports Ethernet port, COM1 (RS-232C), COM2 (RS-422/485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 310.5mm (width) x 232.5mm (height) x 50mm (depth) and weighs 1.62Kg. This is intended for industries like Packaging, HVAC, Pump, Electronics, battery, machine tools and material working etc. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201 and certifications like UL, CE, KC, EAC, China RoHS, REACH. The maintenance accessories (installation fastener screw, power supply connector, battery, etc.) and external options (USB download cable, USB extension cable, screen protection sheet, etc.) are available with HMI ET6. It is designed for panel mounting by 4 or 6 fastener screws (the quantity of screws depends on screen size). This range is designed with high resolution screen, more colors, and Ethernet capability to enable OEMs to optimize their HMI design and investment. The degree of protection is IP65F.

The 15.6“ fanless touchscreen computer XPPC 16-200 incorporating an industrial motherboard is intended for versatile industrial applications. The XPPC 16-200 has a touch screen LED backlight LCD panel with 1920 x 1080 (FHD) resolution and 450 nits brightness. The front panel which adopts flush design and complies with IP65 standard by panel mount makes it the perfect fit in industrial applications. The XPPC 16-200 is powered by the 11th Gen Intel® Core™ i processor and features a slim, lightweight design. The XPPC 16-200 supports multiple mounting options to suit different applications. It can be deployed in a wide range of scenarios, such as hotel self-check-in systems, department stores, welcome boards, and digital signage.

The Allen‑Bradley PowerFlex® 525 (25B‑D2P3N104) is a compact, high‑performance AC variable frequency drive (VFD) designed for flexible motor control in a wide range of industrial applications. Rated at 0.75 kW (1 HP), this drive delivers reliable speed and torque control for machines requiring precise, efficient, and cost‑effective performance.
Built as part of the PowerFlex 520‑Series, the drive offers embedded EtherNet/IP communication, allowing seamless integration into Rockwell Automation Logix‑based systems. It supports advanced motor control options, including Volts per Hertz, Sensorless Vector Control, and closed‑loop control with optional feedback, making it suitable for both simple and demanding applications.
The PowerFlex 525 features a modular and compact design, reducing panel space while simplifying installation and commissioning. It includes removable control modules, power terminals, and an intuitive LCD keypad, enabling quick setup, parameter configuration, and maintenance. Multiple configurable digital and analog I/O points provide flexibility for machine integration.
Designed for reliability and ease of use, the 25B‑D2P3N104 incorporates built‑in safety features such as Safe Torque Off (STO), helping to meet modern machine safety requirements without additional hardware. Its robust construction and wide operating capability make it ideal for conveyors, pumps, fans, mixers, packaging machines, and general‑purpose motor control applications

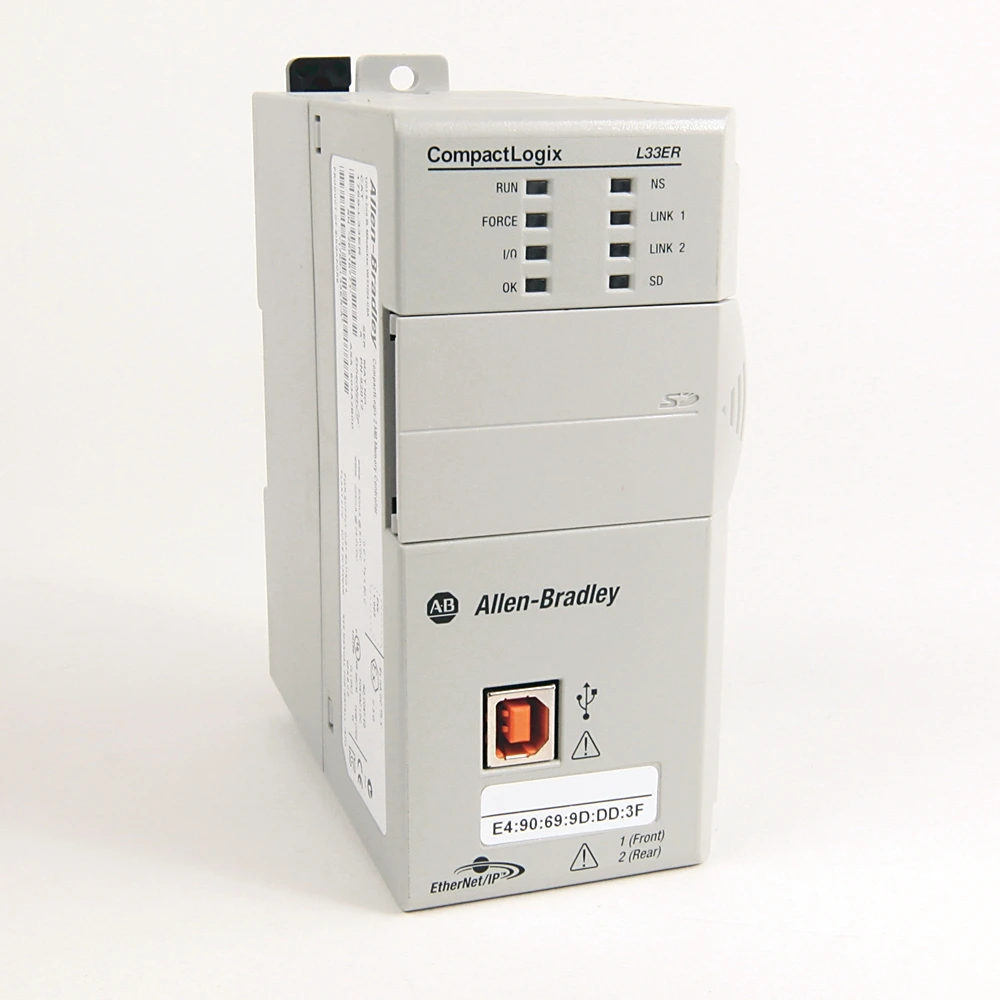

The Allen‑Bradley 1769‑L33ER is a CompactLogix™ 5370 L3 programmable automation controller designed for medium‑sized machines and control systems requiring higher performance, increased memory capacity, and scalable Ethernet connectivity. It is well suited for applications that need reliable control, distributed I/O, and seamless integration into EtherNet/IP networks.
This controller features 2 MB of user memory, providing ample capacity for complex logic, device communication, and data handling. Unlike packaged L1/L2 controllers, the 1769‑L33ER is a modular controller, allowing flexibility in system design when paired with appropriate power supplies and I/O modules.
The 1769‑L33ER includes dual EtherNet/IP ports, enabling high‑speed communication with HMIs, drives, distributed I/O, and other controllers while supporting linear and star network topologies. Its Ethernet capabilities make it ideal for modern, network‑centric automation architectures.
Supporting a wide range of 1769 Compact I/O modules, the controller allows systems to scale easily as application requirements grow. It is fully programmable using Studio 5000 Logix Designer, ensuring seamless integration with Rockwell Automation’s Logix platform.
Overall, the 1769‑L33ER delivers a strong balance of processing power, memory, and Ethernet connectivity, making it an excellent choice for machine builders and system integrators seeking a reliable controller for flexible, expandable industrial automation systems.

The Allen‑Bradley 1769‑L18ERM‑BB1BK is a CompactLogix™ 5370 L1 packaged automation controller designed for compact machines that require high performance, reliable Ethernet communication, and integrated motion control in a single, space‑saving unit. With embedded I/O and advanced networking capabilities, this controller helps reduce system complexity while delivering dependable machine control.
This model features 512 KB user memory, allowing it to handle demanding control applications, and supports up to 8 local expansion I/O modules for future scalability. The controller includes 16 embedded digital inputs (sinking) and 16 embedded digital outputs (sourcing), making it ideal for standalone machines that need built‑in I/O without additional hardware.
Equipped with dual EtherNet/IP ports, the 1769‑L18ERM‑BB1BK supports Device Level Ring (DLR) topologies for network redundancy, improving system availability and minimizing downtime. It also supports integrated motion control for up to 2 axes over EtherNet/IP, making it well suited for applications such as conveyors, indexing systems, packaging machines, and basic motion control tasks.
Operating on 24 VDC, the controller supports SD card–based nonvolatile memory for program backup and easy firmware management. The “BK” suffix indicates a factory‑applied conformal coating, providing added protection against moisture, dust, and corrosive contaminants—ideal for use in harsh or industrial environments.

Display - Colors :7” TFT 16:9 - 64K , Resolution :800x480, WVGA , Brightness :200 Cd/m2 typ. , Dimming :Yes , Touchscreen :Resistive , CPU :32-bit RISC single core - 1 GHz , Operating System :Linux 3.12 , Flash :4 GB , RAM :512 MB , RT-Clock, RTCBack-up, Buzzer :Yes , Interface:, Ethernet port :1 (port 0 - 10/100) , USB port :1 (Host v. 2.0, max. 500 mA) , Serial port :1 (RS-232, RS-485, RS-422, software configurable), SD card :No , Expansion :No , Ratings:, Power supply :24 Vdc (10 to 32 Vdc) , Current Consumption :0.3 A at 24 Vdc (max.) , Input Protection :Automatic , Battery :Yes (Supercapacitor) , Environment Conditions:, Operating Temp :0 to 50 °C (vertical installation) , Storage Temp :-20°C to +70°C , Operating / Storage Humidity :5-85% RH, non condensing , Protection Class :IP66 (front), IP20 (rear) - Type: 2, 4X , Dimensions and Weights:, Faceplate LxH :187x147 mm (7.36x5.79“) , Cutout AxB :176x136 mm (6.93x5.35“) , Depth D+T :29+5 mm (1.14+0.19”) , Weight :Approx 0.6 Kg , Approvals:, CE :Electromagnetic Compatibility Directi ve 2014/30/EU (EMC), ATEX :Zone 2: II 3 G Ex ic ec IIC T6 Gc , UL :cULus: UL508 , UL :cULus: Class 1 Div 2 , DNV-GL :Yes , EU RO MR :Yes , RCM :Yes

The SICK YF8U13‑020VA1XLEAX (2095860) is a sensor‑actuator connecting cable designed for reliable signal and power transmission in industrial automation systems. It features a straight, A‑coded M8 female connector (3‑pin) on one end and flying leads on the other, allowing easy field termination to control panels or junction boxes. The cable length is 2 meters, with an unshielded PVC jacket suitable for standard industrial environments and zones with chemicals. [sick.com], [sick.com]
The cable supports up to 60 V AC / 60 V DC, 4 A current, and provides robust environmental protection with IP65, IP66K, and IP67 ratings when properly connected. Its durable construction (TPU connector body, nickel‑plated zinc locking nut, FKM sealing) ensures long service life under vibration and washdown conditions. It is UL approved and compliant with common industrial standards, making it ideal for connecting proximity sensors, photoelectric sensors, and actuators in machinery and plant automation.

The SICK IME08‑02BPSZT0S (Part No. 1040870) is a compact inductive proximity sensor from the IME series, designed for reliable, non‑contact detection of metallic objects in industrial automation environments. With its M8 threaded cylindrical housing and flush‑mount design, this sensor is ideal for installations where space is limited and precise positioning is required.
The sensor offers a 2 mm nominal sensing range (1.62 mm safe sensing distance) and features a PNP normally‑open (NO) output using a 3‑wire DC connection. It operates on a wide 10–30 V DC supply voltage range, making it compatible with most PLC and control systems commonly used in industrial applications. [sick.com], [us.rs-online.com]
Built with a nickel‑plated brass housing and protected to IP67, the IME08‑02BPSZT0S is resistant to dust, moisture, shock, and vibration, ensuring long service life even in harsh operating conditions. The sensor supports a high switching frequency of up to 4 kHz, enabling fast and accurate detection in dynamic processes such as packaging, assembly lines, machine tools, and material handling systems. [sick.com]
Connection is made via an M8 3‑pin connector, simplifying installation and maintenance. The sensor also includes built‑in short‑circuit and reverse‑polarity protection for added operational safety and reliability.

Redundancy module, 5 ... 24 V DC, 2x 5 A, 1x 10 A

Primary-switched power supply unit QUINT POWER, Pluggable screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 5 A, adjustable from 18 V DC ... 29.5 V DC

Pluggable lighting current arrester, in acc. with type 1/class I/B for 3-phase power supply networks with combined PE and N (L1, L2, L3, PE, N).
