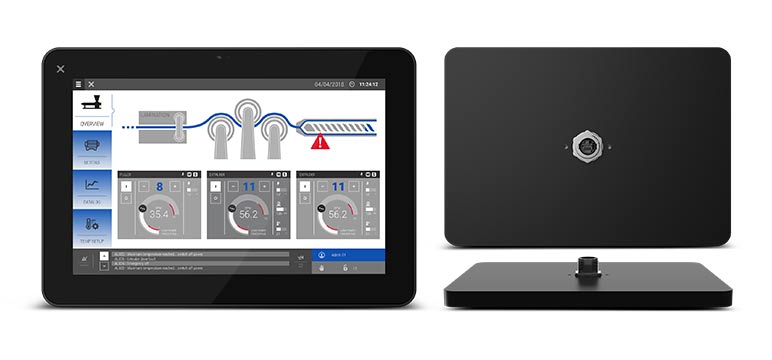

JSmart710 - +JS710BC1U5P1
Display - Colors :10.1” TFT – 16M , Resolution :1280x800 , Brightness :400 cd/m2 typ. , Dimming :to 0% , Touchscreen :Projected Capacitive – Multitouch , CPU :32-bit RISC dual core - 800 MHz , Operating system :Linux RT , Flash :4 GB , RAM :1 GB , FRAM :64 KB , RTClock, RTC Back-up :Yes , Interface:, Ethernet port :10/100 PoE , USB port :1 (Host V2.0, max. 50 mA, available
with special cable), LED :1 RGB , Sensors :Temperature, 3-Axis Accelerometer , Wi-Fi :IEEE 802.11a/b/g , Buzzer :Yes , Ratings:, Power supply :IEEE 802.3af PoE , Power Consumption :12 W , Battery :Yes (rechargeable) , Environment Conditions:, Operating Temp :-20° to +55° C (vertical installation) , Storage Temp :-30°C to +80°C , Operating / Storage Humidity :5-85% RH, non-condensing , Protection Class :IP67 (requires appropriate accessories
and cables) - Type: 1, 12, 4x, Dimensions and Weights:, Faceplate LxH :264.5x183.1 mm (10.41x7.20”) , Depth D+T+T :16.5 mm (0.06”) , Weight :1.2 Kg , Approvals:, CE :Radio Equipment Directive 2014/53/
EU (RED), UL :cULus: UL61010-1 / UL61010-2-201 , UL :cULus: Class 1 Div 2 , DNV-GL :Yes , RCM :Yes , Ordering Code :+JS710BC1U5P1
Terms and Conditions
30-day money-back guarantee
Shipping: Contact us info@aarkautomation.com
Display - Colors :10.1” TFT – 16M , Resolution :1280x800 , Brightness :400 cd/m2 typ. , Dimming :to 0% , Touchscreen :Projected Capacitive – Multitouch , CPU :32-bit RISC dual core - 800 MHz , Operating system :Linux RT , Flash :4 GB , RAM :1 GB , FRAM :64 KB , RTClock, RTC Back-up :Yes , Interface:, Ethernet port :10/100 PoE , USB port :1 (Host V2.0, max. 50 mA, available with special cable), LED :1 RGB , Sensors :Temperature, 3-Axis Accelerometer , Wi-Fi :IEEE 802.11a/b/g , Buzzer :Yes , Ratings:, Power supply :IEEE 802.3af PoE , Power Consumption :12 W , Battery :Yes (rechargeable) , Environment Conditions:, Operating Temp :-20° to +55° C (vertical installation) , Storage Temp :-30°C to +80°C , Operating / Storage Humidity :5-85% RH, non-condensing , Protection Class :IP67 (requires appropriate accessories and cables) - Type: 1, 12, 4x, Dimensions and Weights:, Faceplate LxH :264.5x183.1 mm (10.41x7.20”) , Depth D+T+T :16.5 mm (0.06”) , Weight :1.2 Kg , Approvals:, CE :Radio Equipment Directive 2014/53/ EU (RED), UL :cULus: UL61010-1 / UL61010-2-201 , UL :cULus: Class 1 Div 2 , DNV-GL :Yes , RCM :Yes , Ordering Code :+JS710BC1U5P1
