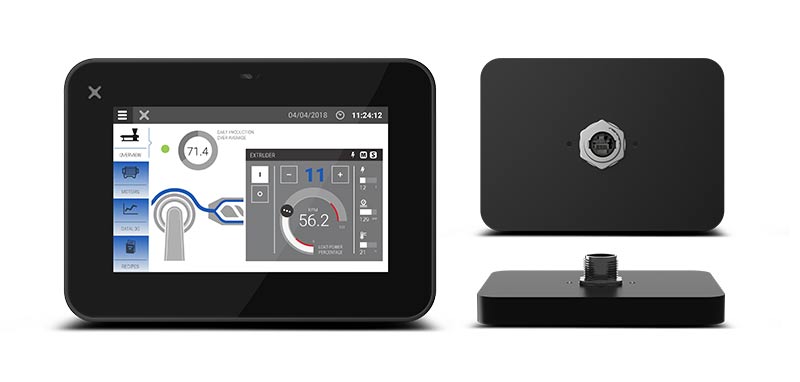

JSmart705 - +JS705BA0U5P1
Display - Colors :5” TFT – 16M , Resolution :800x480 , Brightness :300 cd/m2 typ. , Dimming :to 0% , Touchscreen :Projected Capacitive – Multitouch , CPU :32-bit RISC dual core - 800 MHz , Operating system :Linux RT , Flash :4 GB , RAM :1 GB , FRAM :64 KB , RTClock, RTC Back-up :Yes , Interface:, Ethernet port :10/100 PoE , USB port :1 (Host V2.0, max. 50 mA, available
with special cable), LED :1 RGB , Sensors :Temperature, 3-Axis Accelerometer , Wi-Fi :No , Buzzer :Yes , Ratings:, Power supply :IEEE 802.3af PoE , Power Consumption :6 W , Battery :Yes (rechargeable) , Environment Conditions:, Operating Temp :-20° to +55° C (vertical installation) , Storage Temp :-30°C to +80°C , Operating / Storage Humidity :5-85% RH, non-condensing , Protection Class :IP67 (requires appropriate accessories
and cables) - Type: 1, 12, 4x, Dimensions and Weights:, Faceplate LxH :148.3x105.1 mm (5.83x 4.13”) , Depth D+T+T :16.5 mm (0.06”) , Weight :0.5 Kg , Approvals:, CE :Electromagnetic Compatibility Directive
2014/30/EU (EMC), UL :cULus: UL61010-1 / UL61010-2-201 , UL :cULus: Class 1 Div 2 , DNV-GL :Yes , RCM :Yes , Ordering Code :+JS705BA0U5P1
Terms and Conditions
30-day money-back guarantee
Shipping: Contact us info@aarkautomation.com
Display - Colors :5” TFT – 16M , Resolution :800x480 , Brightness :300 cd/m2 typ. , Dimming :to 0% , Touchscreen :Projected Capacitive – Multitouch , CPU :32-bit RISC dual core - 800 MHz , Operating system :Linux RT , Flash :4 GB , RAM :1 GB , FRAM :64 KB , RTClock, RTC Back-up :Yes , Interface:, Ethernet port :10/100 PoE , USB port :1 (Host V2.0, max. 50 mA, available with special cable), LED :1 RGB , Sensors :Temperature, 3-Axis Accelerometer , Wi-Fi :No , Buzzer :Yes , Ratings:, Power supply :IEEE 802.3af PoE , Power Consumption :6 W , Battery :Yes (rechargeable) , Environment Conditions:, Operating Temp :-20° to +55° C (vertical installation) , Storage Temp :-30°C to +80°C , Operating / Storage Humidity :5-85% RH, non-condensing , Protection Class :IP67 (requires appropriate accessories and cables) - Type: 1, 12, 4x, Dimensions and Weights:, Faceplate LxH :148.3x105.1 mm (5.83x 4.13”) , Depth D+T+T :16.5 mm (0.06”) , Weight :0.5 Kg , Approvals:, CE :Electromagnetic Compatibility Directive 2014/30/EU (EMC), UL :cULus: UL61010-1 / UL61010-2-201 , UL :cULus: Class 1 Div 2 , DNV-GL :Yes , RCM :Yes , Ordering Code :+JS705BA0U5P1
