  3. GW MODBUS TCP/RTU 2E/4DB9 - 2702767
Public Price

GW MODBUS TCP/RTU 2E/4DB9 - 2702767

    This combination does not exist.

    Buy Now

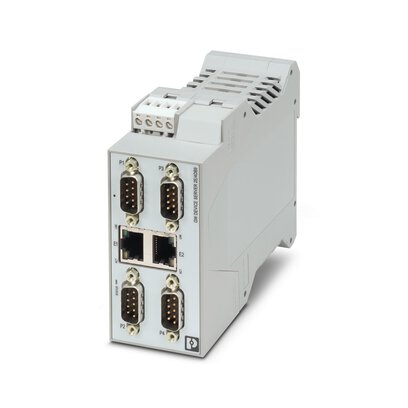

    The GW MODBUS TCP/RTU... gateway converts serial based Modbus RTU (or ASCII) to Modbus TCP. Supports serial client or server devices. Includes two RJ45 ports and four D-SUB 9 ports.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: Contact us info@aarkautomation.com

    View and Download

    Interface converters - GW MODBUS TCP/RTU 2E/4DB9
    2702767

    The GW MODBUS TCP/RTU... gateway converts serial based Modbus RTU (or ASCII) to Modbus TCP. Supports serial client or server devices. Includes two RJ45 ports and four D-SUB 9 ports.

    Free Download available.Downloads
    In stock
    Expected to leave our warehouse in India on 07-Jun-2022, if ordered now

    Product Details

    Utilization restriction
    EMC note EMC: class A product, see manufacturer's declaration in the download area
    Utilization restriction
    CCCex note Use in potentially explosive areas is not permitted in China.
    Product type Interface converter
    MTBF 63.5 Years (Telcordia standard, 25°C temperature, 50% stress, Environmental Factor = 1.0)
    42.3 Years (Telcordia standard, 40°C temperature, 50% stress, Environmental Factor = 1.5)
    Electrical isolation IEC UL 61010-1 (VCC // Ethernet)
    Test voltage data interface/data interface 1.5 kVrms (50 Hz, 1 min.)
    Test voltage data interface/power supply 1.5 kVrms (50 Hz, 1 min.)
    Test voltage data interface/power supply 1.5 kVrms
    Supply
    Supply voltage range 10.8 V DC ... 30 V DC (via pluggable COMBICON screw terminal block)
    Typical current consumption 110 mA (24 V DC)
    Max. current consumption 120 mA (24 V DC)
    Function
    Management Web-based management
    Status and diagnostic indicators LEDs: Status, ACT/LNK (Ethernet data traffic)
    Supply
    Conductor cross section, flexible 0.20 mm² ... 2.50 mm²
    Torque 0.5 Nm ... 0.6 Nm
    Signal Ethernet
    Modbus
    Web server yes
    Data: Modbus/TCP
    Serial transmission speed 10/100 Mbps, auto negotiation
    Connection method RJ45 jack, shielded
    No. of channels 2
    Transmission length ≤ 100 m (shielded twisted pair)
    Protocols supported Modbus RTU, Modbus ASCII, Modbus TCP
    Auxiliary protocols ARP, DHCP (Client), PING
    Data: Modbus RTU / ASCII
    Serial transmission speed 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps
    Number of connections 4
    Connection method D-SUB 9 plug
    Pin assignment DTE
    Transmission length 15 m
    File format/coding 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity
    Data flow control/protocols Software handshake, Xon/Xoff or hardware handshake RTS/CTS
    Data: Modbus RTU / ASCII
    Serial transmission speed 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps
    Number of connections 4
    Connection method D-SUB 9 plug
    Pin assignment 2, 3, 5, 7, 8
    Transmission length ≤ 1200 m
    Termination resistor 120 Ω (configurable)
    File format/coding 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity
    Data: Modbus RTU / ASCII
    Serial transmission speed 0.3; 0.6; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2; 230.4 Kbps
    Number of connections 4
    Connection method D-SUB 9 plug
    Pin assignment 3, 5, 7
    Termination resistor 120 Ω (configurable)
    File format/coding 5/6/7/8 Data bits, 1/2 Stop bits, None/Even/Odd/Mark/Space Parity
    Width 45 mm
    Height 99 mm
    Depth 115 mm
    Color gray
    Housing material PA 6.6
    Housing material PA 6.6
    Ambient conditions
    Degree of protection IP20
    Ambient temperature (operation) -40 °C ... 70 °C
    Ambient temperature (storage/transport) -40 °C ... 80 °C
    Altitude < 2000 m
    Permissible humidity (operation) 10 % ... 95 % (non-condensing)
    Permissible humidity (storage/transport) 5 % ... 95 % (non-condensing)
    Conformity/Approvals
    Conformance CE-compliant
    UL, USA UL 61010-1
    UL, USA / Canada Class I, Div. 2, Groups A, B, C, D T4A
    Noxious gas test ISA-S71.04-1985 G3 Harsh Group A
    ATEX DEMKO 18ATEX 2026X: II 3 G
    Ex ec IIC T4 Gc
    IECEx IECEx UL 18.0023X
    Ex ec IIC T4 Gc
    Electromagnetic compatibility Conformance with EMC Directive 2014/30/EU
    Noise emission EN 61000-6-4
    Noise immunity EN 61000-6-2:2005
    Standards/regulations EN 55022, EN 55024
    Mounting type DIN rail mounting
    Item number 2702767
    Packing unit 1 pc
    Minimum order quantity 1 pc
    Sales Key DNC
    Product Key DNC323
    Catalog Page Page 355 (C-6-2019)
    GTIN 4055626339344
    Weight per Piece (including packing) 248.1 g
    Weight per Piece (excluding packing) 246 g
    Customs tariff number 85176200
    Country of origin US
