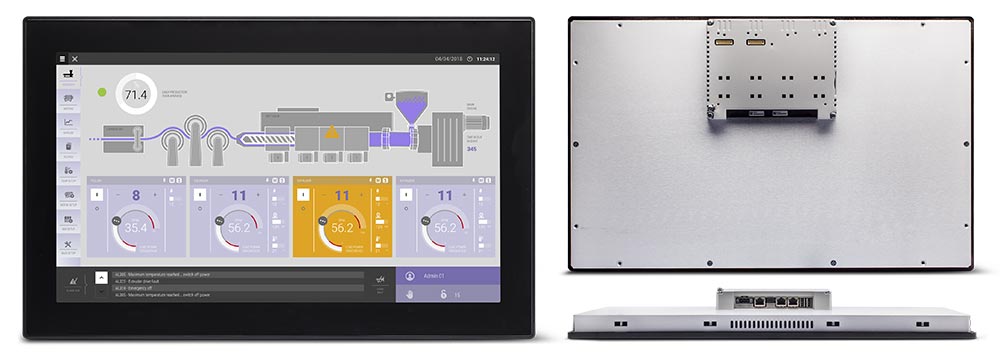

eX721 - +EX721U5P1
Display - Colors :21,5“ TFT LED - 16M, Resolution :1920x1080, full HD, Brightness :300 Cd/m2 typ., Touchscreen :PCAP, Multitouch, CPU :32-bit RISC quad core - 800 MHz, Operating System :Linux RT, Flash :8 GB, RAM :2 GB, RT-Clock, RTCBack-up, Buzzer :Yes, Interface:, Ethernet port :3 (port 0 - 10/100/1000, port 1 -
10/100, port 2 - 10/100), USB port :2 (Host V2.0, max. 500 mA), Serial port:1 (RS-232, RS-485, RS-422, software
configurable). Max 3 serial ports using
plug-in modules., SD card :Yes, Expansion :2 slot for plug in modules, Ratings:, Power supply :24 Vdc (10 to 32 Vdc), Current Consumption :1.7 A at 24 Vdc (max.), Input Protection :Electronic, Battery :Rechargeable Lithium battery, not user-replaceable, Environment Conditions:, Operating Temperature:-20° to +60 °C (vertical installation).
Plug-in modules and USB devices may
limit max temperature to +50 °C, Storage Temp :-20°C to +70°C, Operating / Storage Humidity :5-85% RH, non condensing, Protection Class :IP66 (front), IP20 (rear) - Type: 12, 4X, Dimensions and Weights:, Faceplate LxH :552x347 mm (21,7x13,66“), Cutout AxB :541x336 mm, Depth D+T :56+8.5 mm, Weight :6.1 Kg, Approvals:, CE :Electromagnetic Compatibility
Directive 2014/30/EU (EMC), ATEX :Zone 2/22: II 3 G Ex nA IIC T5 Gc, II 3 D Ex tc IIIC T95°C Dc, IECEx :Zone 2/22: Ex nA IIC T5 Gc, Ex tc IIIC T95°C Dc, UL :cULus: UL61010-1 / UL61010-2-201, UL :cULus: Class 1 Div 2, DNV-GL, LR, EU RO MR :Yes, RCM :Yes
Terms and Conditions
30-day money-back guarantee
Shipping: Contact us info@aarkautomation.com
Display - Colors :21,5“ TFT LED - 16M, Resolution :1920x1080, full HD, Brightness :300 Cd/m2 typ., Touchscreen :PCAP, Multitouch, CPU :32-bit RISC quad core - 800 MHz, Operating System :Linux RT, Flash :8 GB, RAM :2 GB, RT-Clock, RTCBack-up, Buzzer :Yes, Interface:, Ethernet port :3 (port 0 - 10/100/1000, port 1 - 10/100, port 2 - 10/100), USB port :2 (Host V2.0, max. 500 mA), Serial port:1 (RS-232, RS-485, RS-422, software configurable). Max 3 serial ports using plug-in modules., SD card :Yes, Expansion :2 slot for plug in modules, Ratings:, Power supply :24 Vdc (10 to 32 Vdc), Current Consumption :1.7 A at 24 Vdc (max.), Input Protection :Electronic, Battery :Rechargeable Lithium battery, not user-replaceable, Environment Conditions:, Operating Temperature:-20° to +60 °C (vertical installation). Plug-in modules and USB devices may limit max temperature to +50 °C, Storage Temp :-20°C to +70°C, Operating / Storage Humidity :5-85% RH, non condensing, Protection Class :IP66 (front), IP20 (rear) - Type: 12, 4X, Dimensions and Weights:, Faceplate LxH :552x347 mm (21,7x13,66“), Cutout AxB :541x336 mm, Depth D+T :56+8.5 mm, Weight :6.1 Kg, Approvals:, CE :Electromagnetic Compatibility Directive 2014/30/EU (EMC), ATEX :Zone 2/22: II 3 G Ex nA IIC T5 Gc, II 3 D Ex tc IIIC T95°C Dc, IECEx :Zone 2/22: Ex nA IIC T5 Gc, Ex tc IIIC T95°C Dc, UL :cULus: UL61010-1 / UL61010-2-201, UL :cULus: Class 1 Div 2, DNV-GL, LR, EU RO MR :Yes, RCM :Yes
