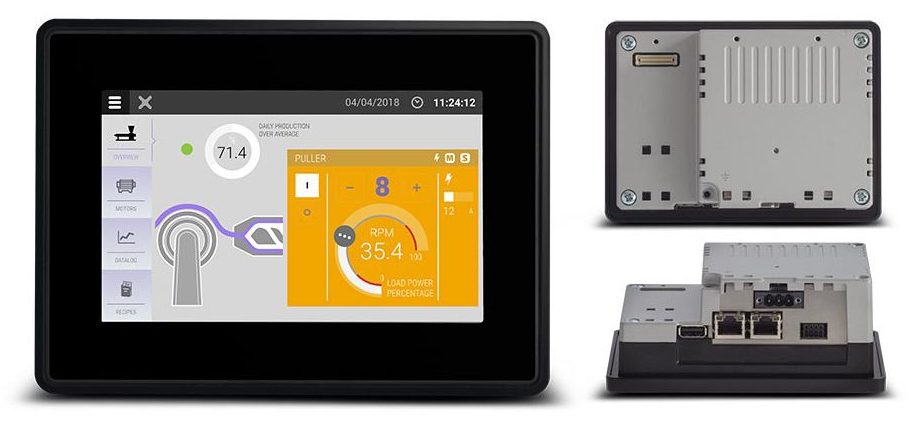

eX705 - +EX705U5P1
Display - Colors :5“ TFT 16:9 LED - 64K , Resolution :800x480, WVGA , Brightness :300 Cd/m2 typ. , Touchscreen :PCAP, Multitouch , CPU :32-bit RISC single core - 1 GHz , Operating System :Linux RT , Flash :4 GB , RAM :512 MB , RT-Clock, RTCBack-up, Buzzer :Yes , Interface:, Ethernet port :2 (port 0 - 10/100, port 1 - 10/100) , USB port :1 (Host V2.0, max. 500 mA) , Serial port:1 (RS-232, RS-485, RS-422, software
configurable) Max 2 serial ports using
plug-in modules., SD card :Yes , Expansion :1 slot for plug in modules , Ratings:, Power supply :24 Vdc (10 to 32 Vdc ) , Current Consumption :0.6 A at 24 Vdc (max.) , Input Protection :Electronic , Battery :Rechargeable Lithium battery, not user-replaceable, Environment Conditions:, Operating Temperature:-20° to +60 °C (vertical installation).
Plug-in modules and USB devices may
limit max temperature to +50 °C, Storage Temp :-20°C to +70°C , Operating / Storage Humidity :5-85% RH, non condensing , Protection Class :IP66 (front), IP20 (rear) - Type: 12, 4X , Dimensions and Weights:, Faceplate LxH :147x107 mm (5.78x4.21“) , Cutout AxB :136x96 mm (5.35x3.78“) , Depth D+T :52+8 mm (2.40+0.31”) , Weight :1.3 Kg , Approvals:, CE :Electromagnetic Compatibility
Directive 2014/30/EU (EMC), ATEX :Zone 2/22: II 3 G Ex nA IIC T5 Gc, II 3 D Ex tc IIIC T95°C Dc, IECEx :Zone 2/22: Ex nA IIC T5 Gc, Ex tc IIIC T95°C Dc, UL :cULus: UL61010-1 / UL61010-2-201 , UL :cULus: Class 1 Div 2 , DNV-GL, LR, EU RO MR :Yes , RCM :Yes
Terms and Conditions
30-day money-back guarantee
Shipping: Contact us info@aarkautomation.com
Display - Colors :5“ TFT 16:9 LED - 64K , Resolution :800x480, WVGA , Brightness :300 Cd/m2 typ. , Touchscreen :PCAP, Multitouch , CPU :32-bit RISC single core - 1 GHz , Operating System :Linux RT , Flash :4 GB , RAM :512 MB , RT-Clock, RTCBack-up, Buzzer :Yes , Interface:, Ethernet port :2 (port 0 - 10/100, port 1 - 10/100) , USB port :1 (Host V2.0, max. 500 mA) , Serial port:1 (RS-232, RS-485, RS-422, software configurable) Max 2 serial ports using plug-in modules., SD card :Yes , Expansion :1 slot for plug in modules , Ratings:, Power supply :24 Vdc (10 to 32 Vdc ) , Current Consumption :0.6 A at 24 Vdc (max.) , Input Protection :Electronic , Battery :Rechargeable Lithium battery, not user-replaceable, Environment Conditions:, Operating Temperature:-20° to +60 °C (vertical installation). Plug-in modules and USB devices may limit max temperature to +50 °C, Storage Temp :-20°C to +70°C , Operating / Storage Humidity :5-85% RH, non condensing , Protection Class :IP66 (front), IP20 (rear) - Type: 12, 4X , Dimensions and Weights:, Faceplate LxH :147x107 mm (5.78x4.21“) , Cutout AxB :136x96 mm (5.35x3.78“) , Depth D+T :52+8 mm (2.40+0.31”) , Weight :1.3 Kg , Approvals:, CE :Electromagnetic Compatibility Directive 2014/30/EU (EMC), ATEX :Zone 2/22: II 3 G Ex nA IIC T5 Gc, II 3 D Ex tc IIIC T95°C Dc, IECEx :Zone 2/22: Ex nA IIC T5 Gc, Ex tc IIIC T95°C Dc, UL :cULus: UL61010-1 / UL61010-2-201 , UL :cULus: Class 1 Div 2 , DNV-GL, LR, EU RO MR :Yes , RCM :Yes
