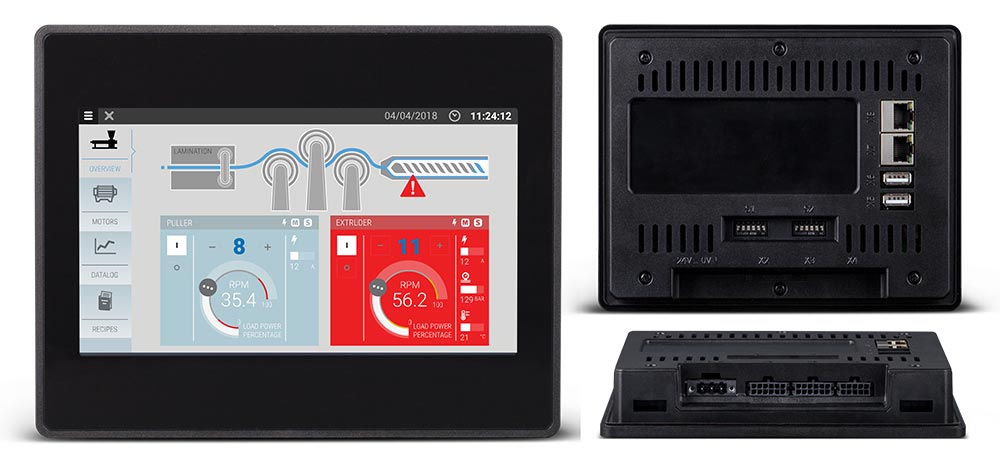

eSMART107 - +ESMA107U301
Display - Colors :7” TFT 16:9 - 64K , Resolution :800x480, WVGA , Brightness :200 Cd/m2 typ. , Dimming :Yes , Touchscreen :Resistive , CPU :32-bit RISC dual core - 800 MHz , Operating System :Linux RT , Flash :4 GB , RAM :1 GB , RT-Clock, RTCBack-up, Buzzer :Yes, Yes, No , Interface:, Ethernet port :2 (port 0 - 10/100/1000, port 1 -
10/100) , USB port :2 (Host V2.0, max. 100 mA) , Serial port :2 (RS-232), 2 (RS-422/RS-485 isolated),
2 (CAN 2.0b isolated), SD card :No , Expansion :No , Ratings:, Power supply :24 Vdc (10 to 32 Vdc) , Current Consumption :0.3 A at 24 Vdc (max.) , Input Protection :Automatic , Battery :Yes (Supercapacitor) , Environment Conditions:, Operating Temp :0 to +50°C (vertical installation) , Storage Temp :-20°C to +70°C , Operating / Storage Humidity :5-85% RH, non condensing , Protection Class :IP66 (front), IP20 (rear) - Type: 2, 4X , Dimensions and Weights:, Faceplate LxH :187x147 mm (7.36x5.79“) , Cutout AxB :176x136 mm (6.93x5.35“) , Depth D+T :29+5 mm (1.14+0.19”) , Weight :0.875 Kg , Approvals:, CE :Electromagnetic Compatibility Directi
ve 2014/30/EU (EMC), ATEX :- , UL :cULus: UL508 , UL :- , DNV-GL :Yes , EU RO MR :Yes , RCM :Yes
Terms and Conditions
30-day money-back guarantee
Shipping: Contact us info@aarkautomation.com
Display - Colors :7” TFT 16:9 - 64K , Resolution :800x480, WVGA , Brightness :200 Cd/m2 typ. , Dimming :Yes , Touchscreen :Resistive , CPU :32-bit RISC dual core - 800 MHz , Operating System :Linux RT , Flash :4 GB , RAM :1 GB , RT-Clock, RTCBack-up, Buzzer :Yes, Yes, No , Interface:, Ethernet port :2 (port 0 - 10/100/1000, port 1 - 10/100) , USB port :2 (Host V2.0, max. 100 mA) , Serial port :2 (RS-232), 2 (RS-422/RS-485 isolated), 2 (CAN 2.0b isolated), SD card :No , Expansion :No , Ratings:, Power supply :24 Vdc (10 to 32 Vdc) , Current Consumption :0.3 A at 24 Vdc (max.) , Input Protection :Automatic , Battery :Yes (Supercapacitor) , Environment Conditions:, Operating Temp :0 to +50°C (vertical installation) , Storage Temp :-20°C to +70°C , Operating / Storage Humidity :5-85% RH, non condensing , Protection Class :IP66 (front), IP20 (rear) - Type: 2, 4X , Dimensions and Weights:, Faceplate LxH :187x147 mm (7.36x5.79“) , Cutout AxB :176x136 mm (6.93x5.35“) , Depth D+T :29+5 mm (1.14+0.19”) , Weight :0.875 Kg , Approvals:, CE :Electromagnetic Compatibility Directi ve 2014/30/EU (EMC), ATEX :- , UL :cULus: UL508 , UL :- , DNV-GL :Yes , EU RO MR :Yes , RCM :Yes
