eSMART10 - +ESMA10U301

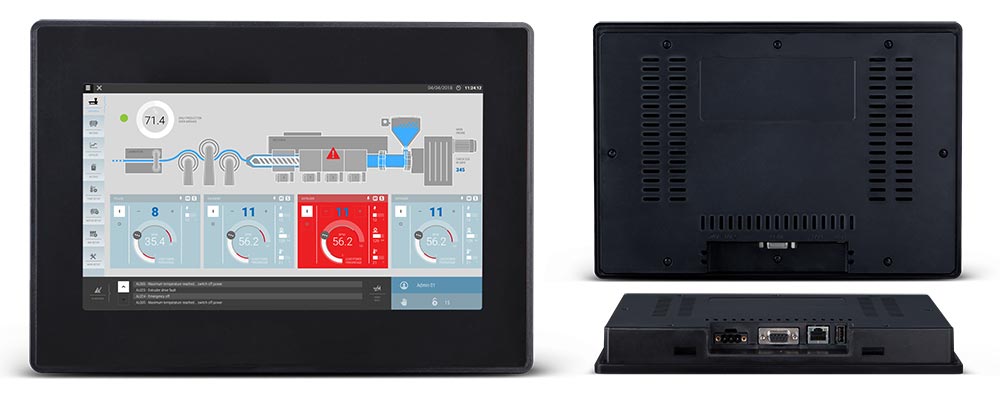

Display - Colors :10.1” TFT 16:9 - 64K, Resolution :1024x600, WVGA, Brightness :200 Cd/m2 typ., Dimming :Yes, Touchscreen :Resistive, CPU :32-bit RISC single core - 1 GHz, Operating System :Linux 3.12, Flash :4 GB, RAM :512 MB, RT-Clock, RTCBack-up, Buzzer :Yes, Interface:, Ethernet port :1 (port 0 - 10/100), USB port :1 (Host v. 2.0, max. 500 mA), Serial port :1 (RS-232, RS-485, RS-422, software
configurable), SD card :No, Expansion :No, Ratings:, Power supply :24 Vdc (10 to 32 Vdc), Current Consumption :0.38 A at 24 Vdc (max.), Input Protection :Automatic, Battery :Yes (Supercapacitor), Environment Conditions:, Operating Temp :0 to 50 °C (vertical installation), Storage Temp :-20°C to +70°C, Operating / Storage Humidity :5-85% RH, non condensing, Protection Class :IP66 (front), IP20 (rear) - Type: 2, 4X, Dimensions and Weights:, Faceplate LxH :282x197 mm (11.10x7.80“), Cutout AxB :271x186 mm (10.66x7.32“), Depth D+T :29+6 mm (1.14+0.23”), Weight :Approx 1.0 Kg, Approvals:, CE :Electromagnetic Compatibility Directi
ve 2014/30/EU (EMC), ATEX :Zone 2: II 3 G Ex ic ec IIC T6 Gc, UL :cULus: UL508, UL :cULus: Class 1 Div 2, DNV-GL :Yes, EU RO MR :Yes, RCM :Yes
