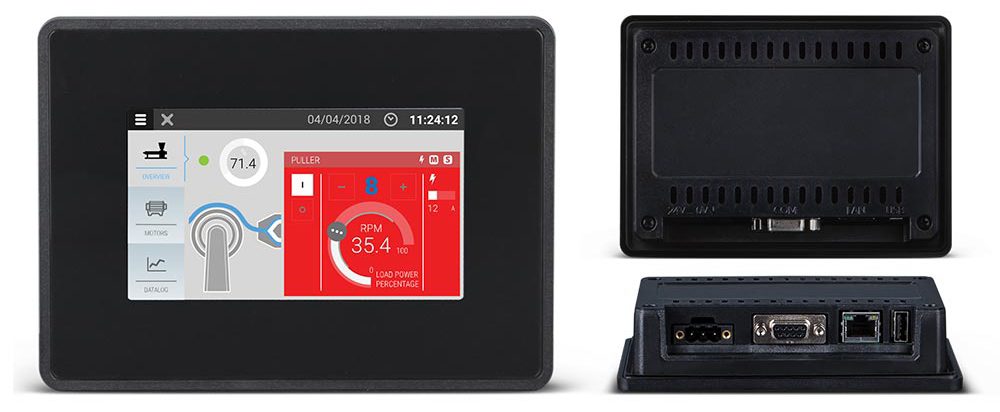

eSMART04M - +ESMA04MU301
Display - Colors :4.3” TFT 16:9 - 64K , Resolution :480x272 , Brightness :200 Cd/m2 typ. , Dimming :Yes , Touchscreen :Resistive , CPU :32-bit RISC single core - 1 GHz , Operating System :Linux 3.12 , Flash :4 GB , RAM :512 MB , RT-Clock, RTCBack-up, Buzzer :Yes , Interface:, Ethernet port :1 (port 0 - 10/100) , USB port :1 (Host v. 2.0, max. 500 mA) , Serial port :1 (RS-232, RS-485, RS-422, software
configurable), SD card :No , Expansion :No , Ratings:, Power supply :24 Vdc (10 to 32 Vdc) , Current Consumption :0.25 A max. at 24 Vdc , Input Protection :Automatic , Battery :Yes (Supercapacitor) , Environment Conditions:, Operating Temp :0 to 50 °C (vertical installation) , Storage Temp :-20°C to +70°C , Operating / Storage Humidity :5-85% RH, non condensing , Protection Class :IP66 (front), IP20 (rear) - Type: 2, 4X , Dimensions and Weights:, Faceplate LxH :147x107 mm (5.78x4.21“) , Cutout AxB :136x96 mm (5.35x3.78“) , Depth D+T :29+5 mm (1.14+0.19”) , Weight :Approx 0.4 Kg , Approvals:, CE :Electromagnetic Compatibility Directi
ve 2014/30/EU (EMC), ATEX :Zone 2: II 3 G Ex ic ec IIC T6 Gc , UL :cULus: UL508 , UL :cULus: Class 1 Div 2 , DNV-GL :Yes , EU RO MR :Yes , RCM :Yes
