eXware 703 +EXW703U0P1

    This combination does not exist.

    Buy Now

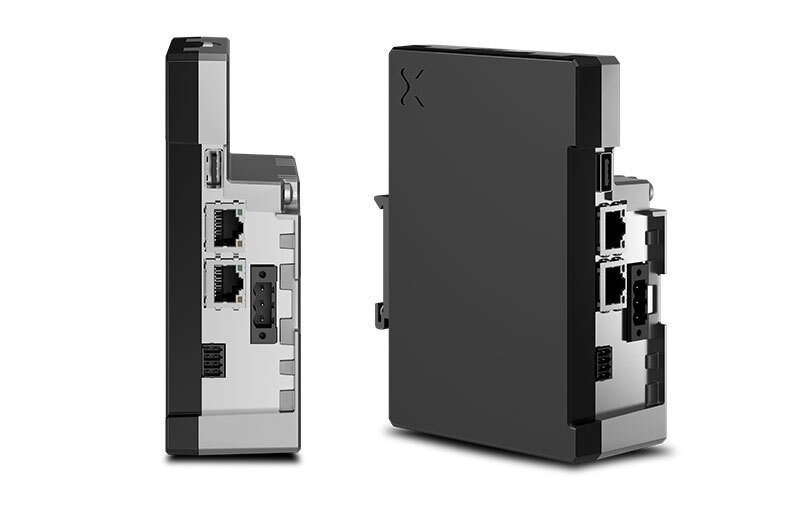

    Edge Gateway/Controller, 4GB Flash memory, 2x Ethernet, JMobile runtime
    System Resources
    CPU:32-bit RISC single core - 1 GHz
    Operating System: Linux RT
    Flash: 4 GB
    RAM: 512 MB
    RTC, RTC Back-up, Buzzer: Yes
    Interface
    Ethernet port 2 (port 0 - 10/100, port 1 - 10/100)
    USB port 1 (Host v. 2.0, max. 500 mA)
    Serial port 1 (RS-232, RS-485, RS-422, software configurable) Max 2 serial ports using plug-in modules.
    SD card Yes
    Expansion 1 slot for plug-in modules
    Power supply 24 Vdc (10 to 32 Vdc)
    Current Consumption 0.35 A max. at 24 Vdc
    Input Protection Electronic
    Battery Yes

    Terms and Conditions
    30-day money-back guarantee
    Shipping: Contact us info@aarkautomation.com

    Technical Data

    System Resources
    CPU32-bit RISC single core - 1 GHz
    Operating SystemLinux RT
    Flash4 GB
    RAM512 MB
    RTC, RTC Back-up, BuzzerYes
    Interface
    Ethernet port2 (port 0 - 10/100, port 1 - 10/100)
    USB port1 (Host v. 2.0, max. 500 mA)
    Serial port1 (RS-232, RS-485, RS-422, software configurable) Max 2 serial ports using plug-in modules.
    SD cardYes
    Expansion1 slot for plug-in modules
    Ratings
    Power supply 24 Vdc (10 to 32 Vdc)
    Current Consumption0.35 A max. at 24 Vdc
    Input ProtectionElectronic
    BatteryYes
    Environment Conditions
    Operating Temp-20° to +60 °C - Plug-in modules and USB devices may limit max temperature to +50 °C
    Storage Temp-20°C to +70°C
    Operating/Storage Humidity5 - 85% RH, non condensing
    Protection ClassIP20
    Dimensions and Weights
    Faceplate LxH45x134 mm (1.77x5.27“)
    Depth D102 mm (4.01”)
    Weight0.6 Kg
    MountingDIN Rail (TS35)
    Approvals
    CEElectromagnetic Compatibility Directive 2014/30/EU (EMC)
    ATEXZone 2: II 3 G Ex ec IIC T5…T4 Gc | -20°C ≤ Tamb ≤ +60°C or 0°C ≤ Tamb ≤ +50°C
    IECExZone 2: Ex ec IIC T5…T4 Gc | -20°C ≤ Tamb ≤ +60°C or 0°C ≤ Tamb ≤ +50°C
    ULcULus: UL61010-1 / UL61010-2-201
    ULcULus: Class 1 Div 2
    DNV-GLYes
    RCMYes

    Ordering Information

    EXWARE
    +EXW703U0P1 Edge Gateway/Controller, 4GB Flash memory, 2x Ethernet, JMobile runtime
